Swivel DYT 3/8F x 3/8M

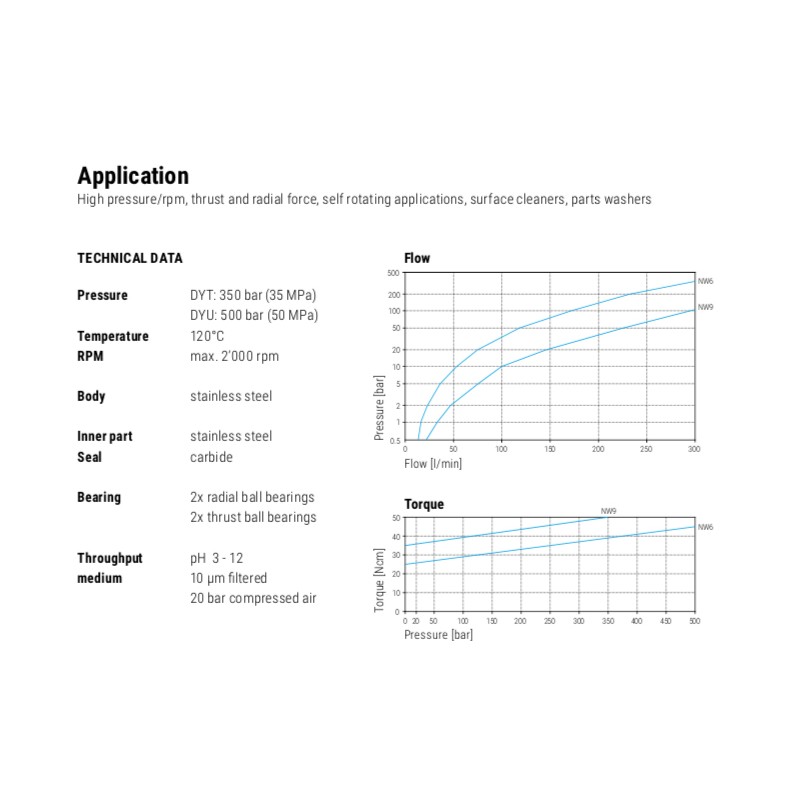

Application

High pressure/rpm, thrust and radial force, self rotating applications, surface cleaners, parts washers

Features

• Pressure: DYT: 350 bar (35 MPa), DYT: 500 bar (50 MPa)
• Temperature: 120°C
• Max Rpm: 2,000 Rpm
• Body materials: Stainless steel
• Inner part material:  Stainless steel
• Seals material: Carbide
• Bearing: 2X Radial ball bearings, 2X thrust ball bearings
• Throughput medium: pH 3 – 12, 10 µm filtered, 20 bar compressed air
