Features

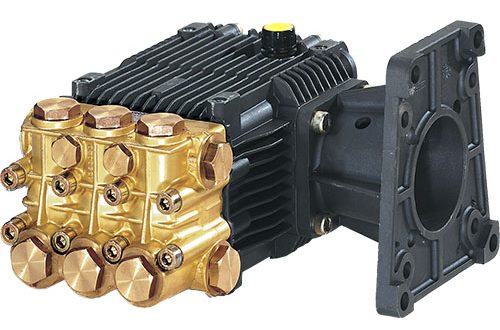

• 3-piston alternating volumetric pumps for use on cleaning units and industrial systems.
• Hollow shaft version with flange F41 included for gasoline engine ø1″SAE J609a.
• Pump body and cover in die-cast aluminium alloy. Rear cover with oil drain outlet and oil sight glass. Cap with dipstick for oil level on body pump.
• Pistons driven by crank-connecting rod mechanism.
• Pump shaft in pressed high-strength steel.
• Oversized friction bearings.
• Connecting rods in bronze.
• One-piece ceramic pistons.
• Pump head in nickel-plated brass.
• Double gasket sealing system. Intake and delivery valves have plugs for easier maintenance.

Specifications

• D version + F4Ø1″
• Speed: 3,400 RPM
• Max Flow: 18.9 L
• Max Pressure: 4,000 PSI
• Weight: 10.5 kg
