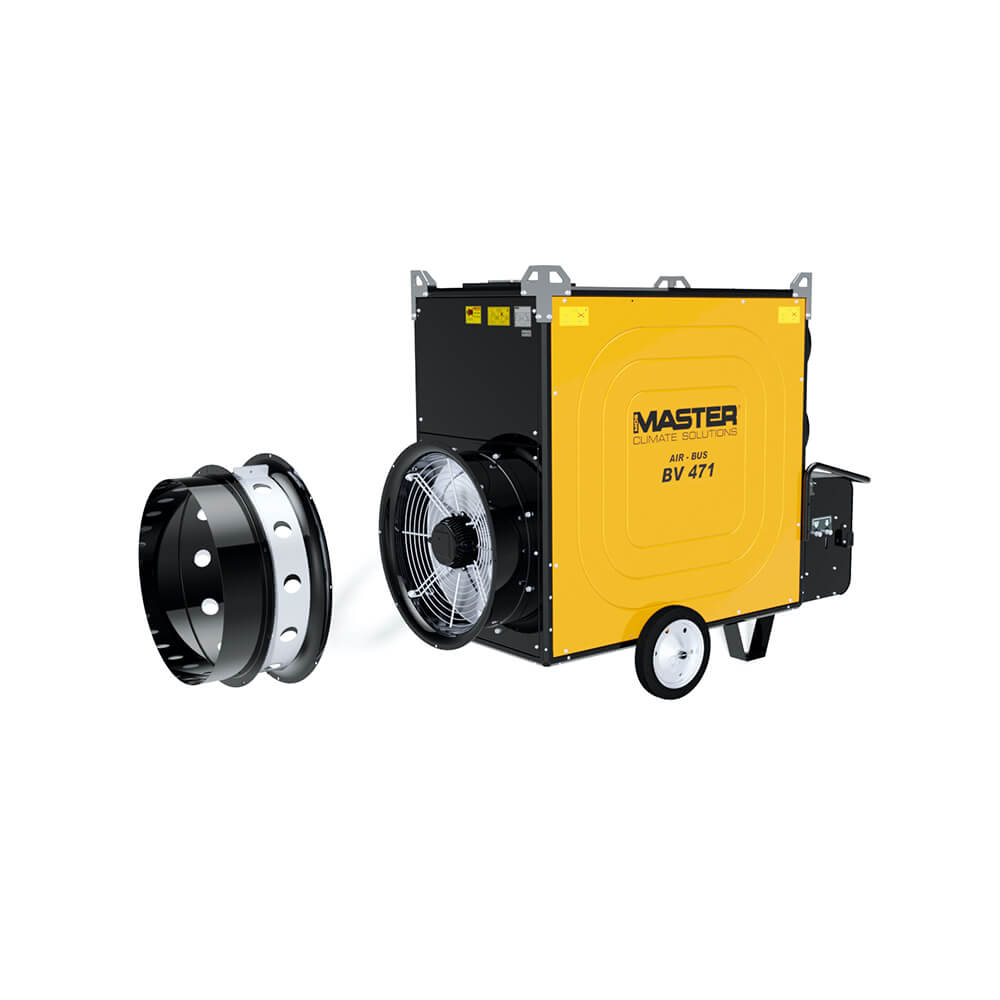

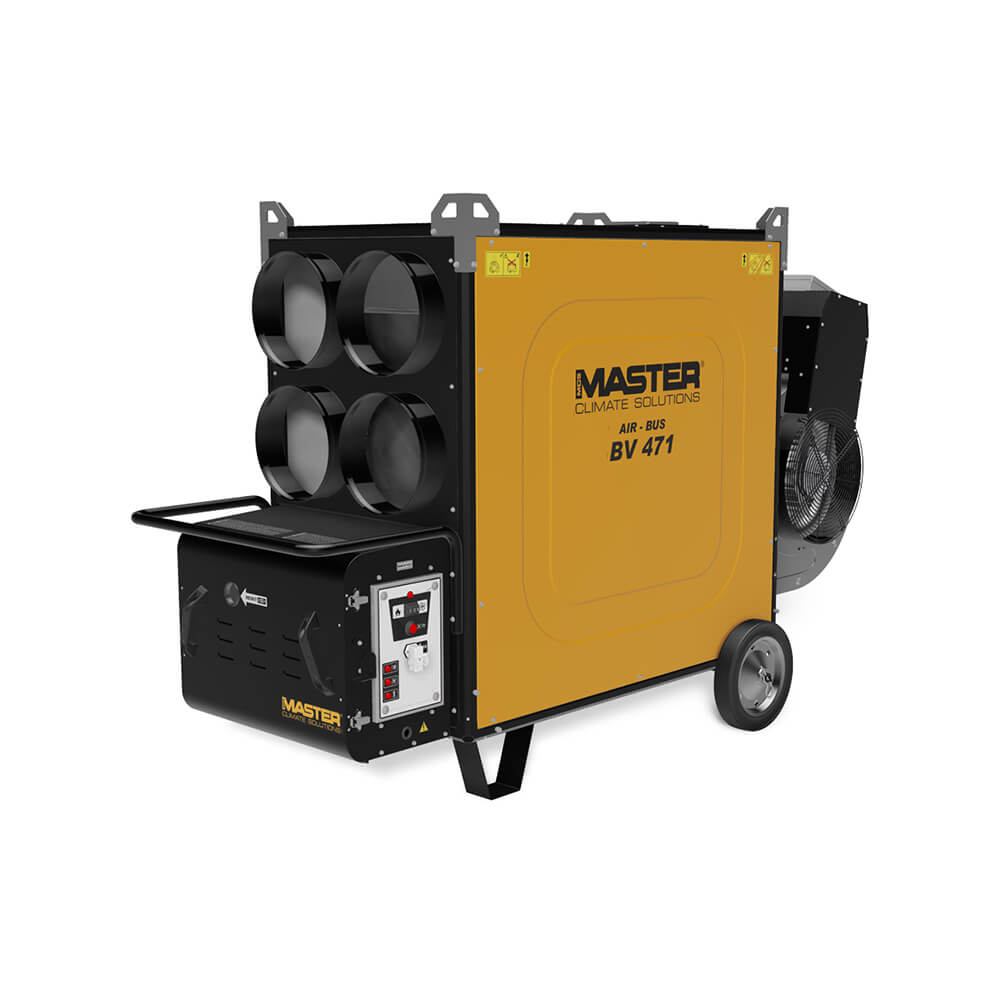

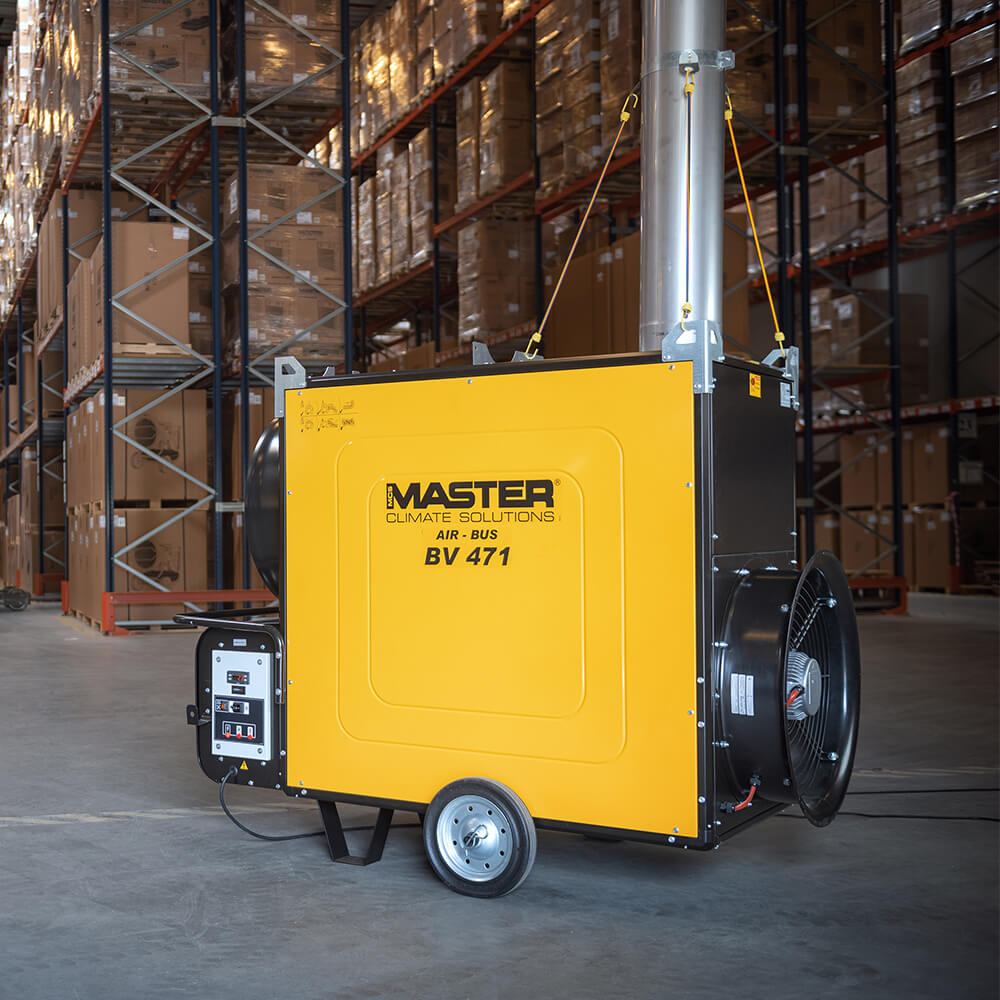

Master BV471 S4 Airbus
Features
- Digital control of the combustion
- Strong and robust steel frame with metric bolts

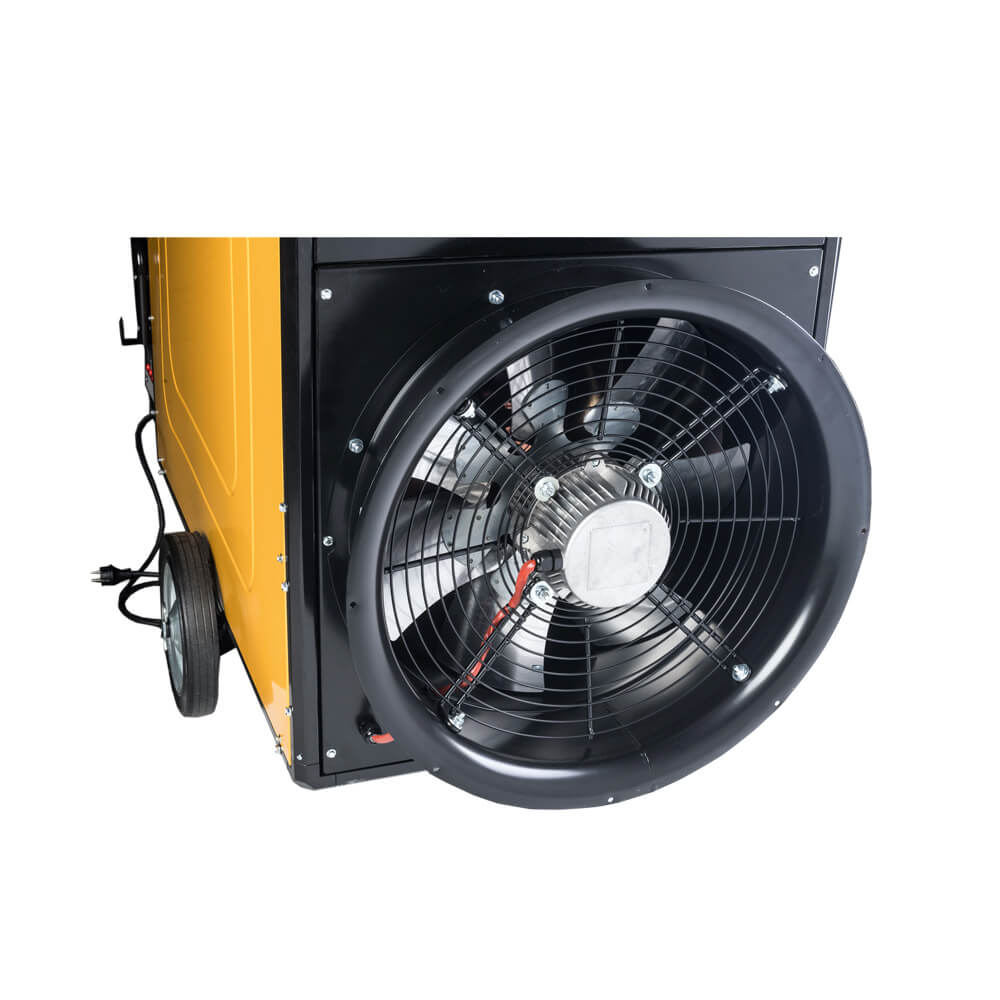

- Powerful fan
- Air pressure 250 Pa (400 Pa for centrifugal version)
- Unique ‘cold start’ button for very cold environments

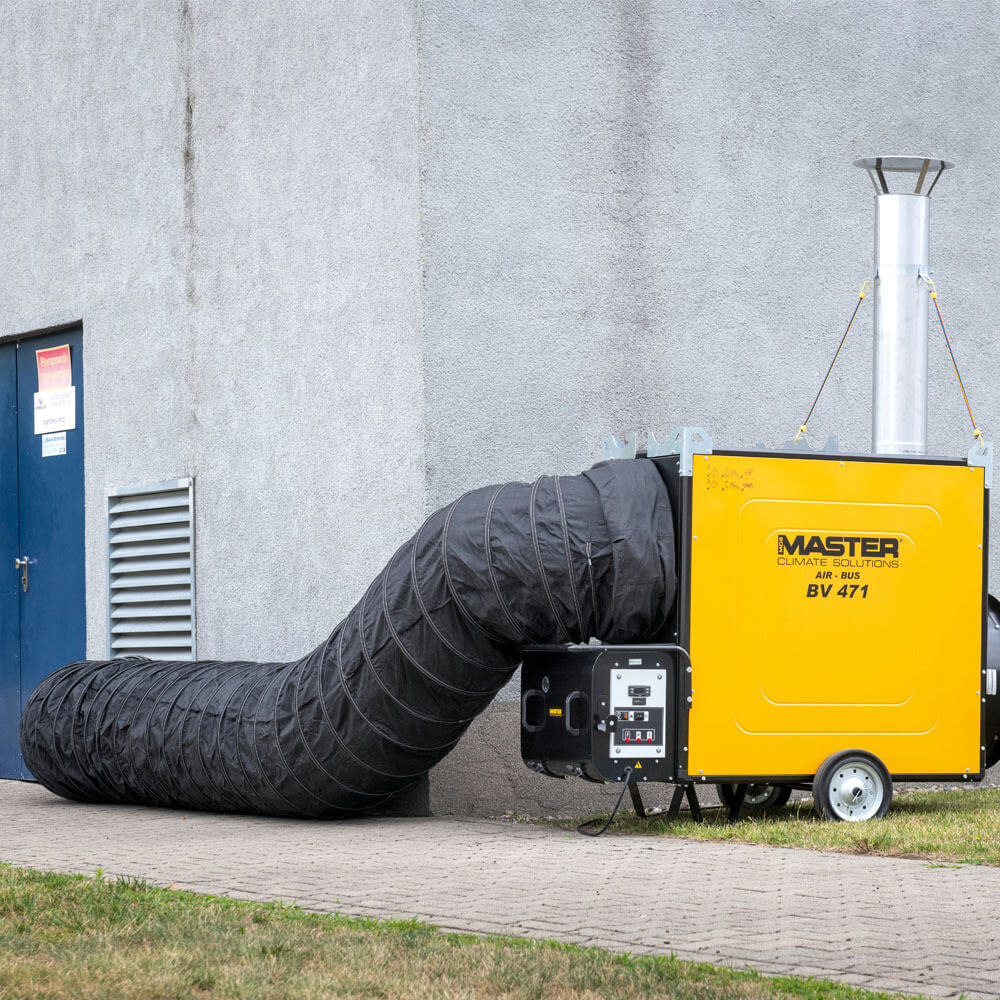

- Possible connection to 4, 2 or 1 flexible tubes

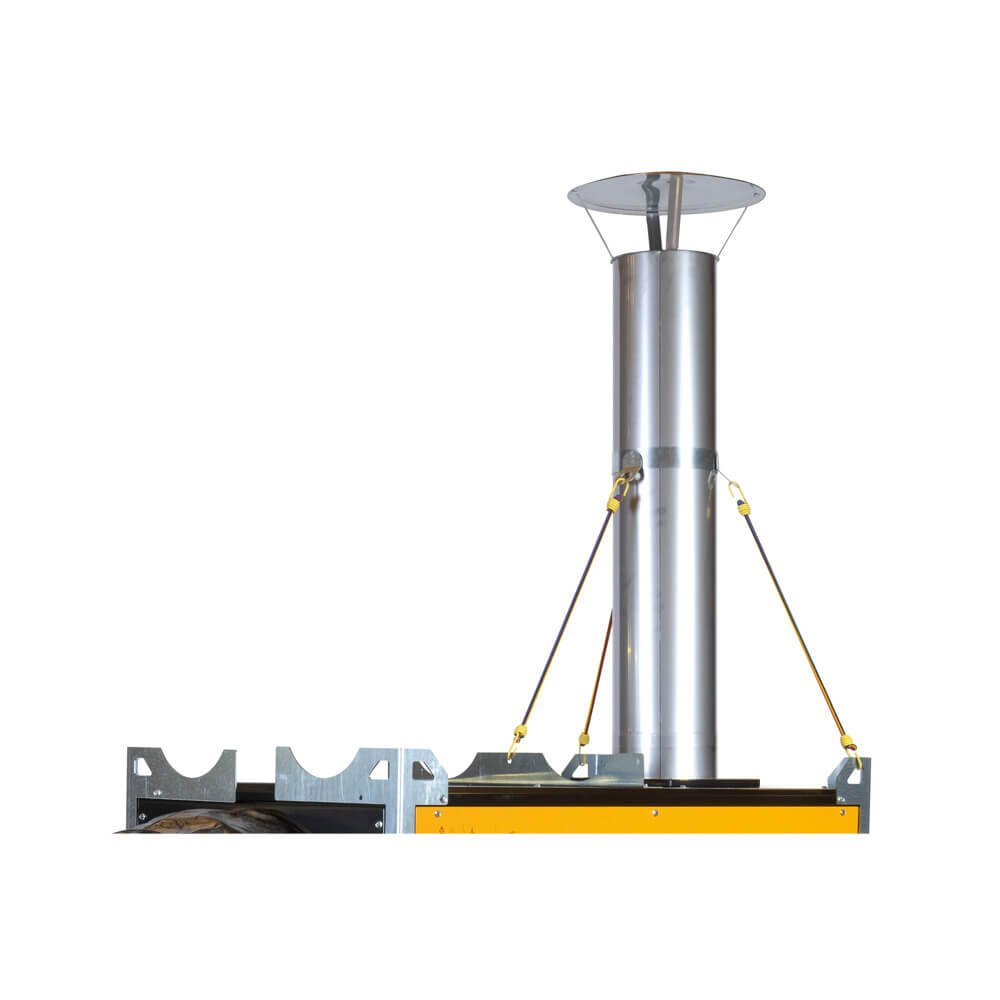

- Flue gas exhaust
- Separate Riello oil burner
- Summer/Winter switch for ventilation only

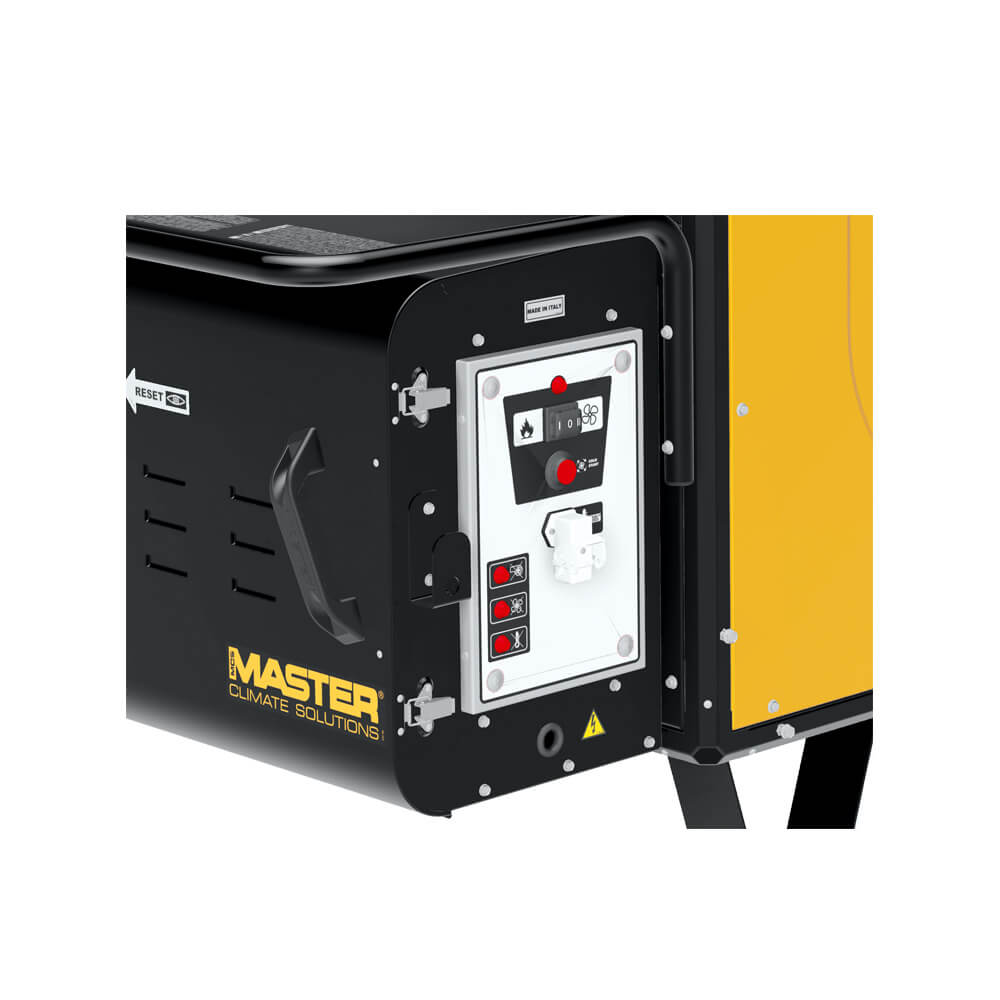

- Electronic flame control with photocell
- Fan-Limit thermostat with automatic reset
- Limit thermostat with manual reset
- Fuel preheater
- Two oil filters: oil pump filter and suction filter
- Quick connector to external tank (optional)

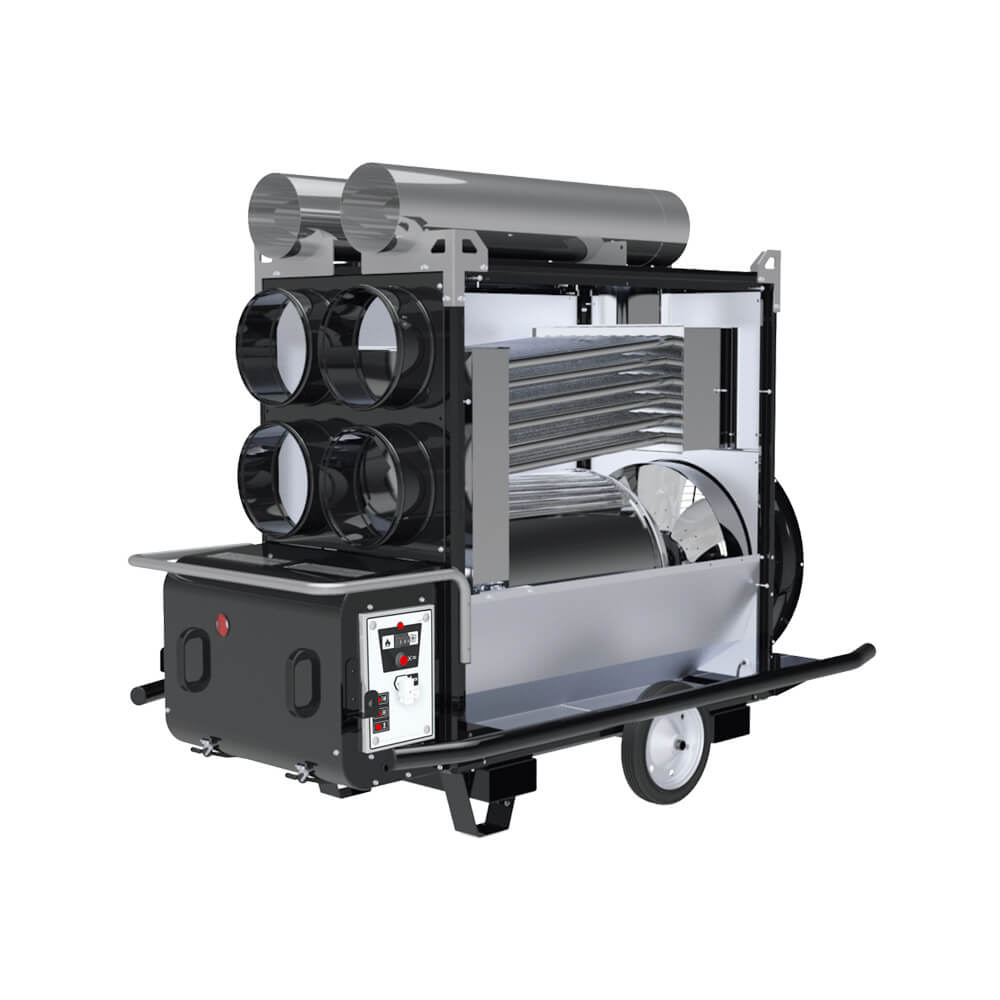

- High-efficiency heat exchanger made of stainless steel pipes
- Stainless steel combustion chamber
- Robust wheels included
- 4 robust crane hooks
Specifications
| Heating power: | 136 kW, 464,000 Btu/h, 116,900 kcal/h |
| Air flow: | 8,500 m³/h |
| Fan type: | Axial |
| Air pressure: | 250 Pa |
| Thermostat control: | Analogue or digital |
| Fuel consumption: | 12.93 L/h |
| Power supply: | 220-240/1ph/50 V/Hz |
| Electric power: | 1.5 kW |
| Rated current: | 6.9 A |
| Electronic box protection: | IP55 |
| Flue tube: | 200 Ømm |
| Air outlet diameter: | 4 x 27 cm |
| Air outlet diameter: | 1 x 60 cm |
| Product size (l x w x h): | 1790 x 880 x 1360 mm |
| Box size (l x w x h): | 1730 x 755 x 1325 mm |
| Net/gross weight: | 270/300 kg |
Suitable for:
- Agriculture
- Automotive

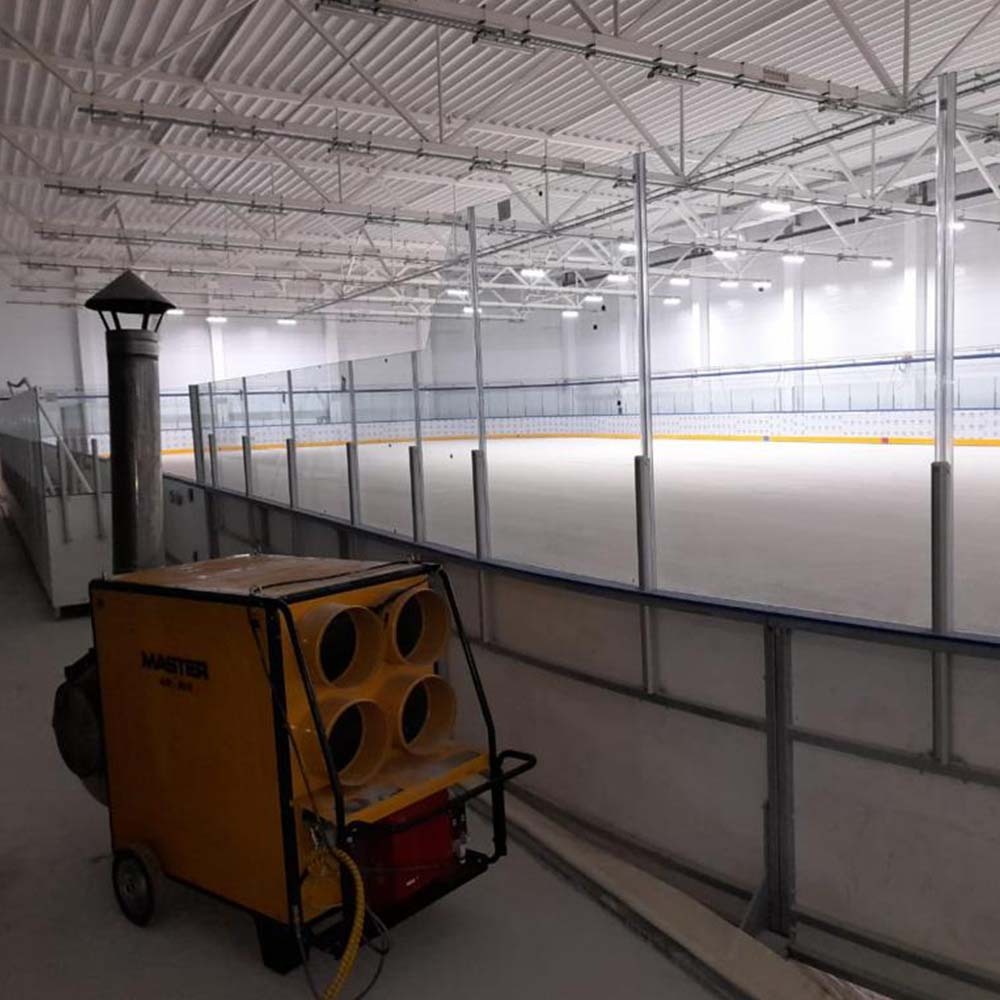

- Buildings and commercial spaces
- Construction
- Emergency services
- Events, festivals and temporary structures
- General industry and production
- Military and aerospace
- Rental companies
