Features

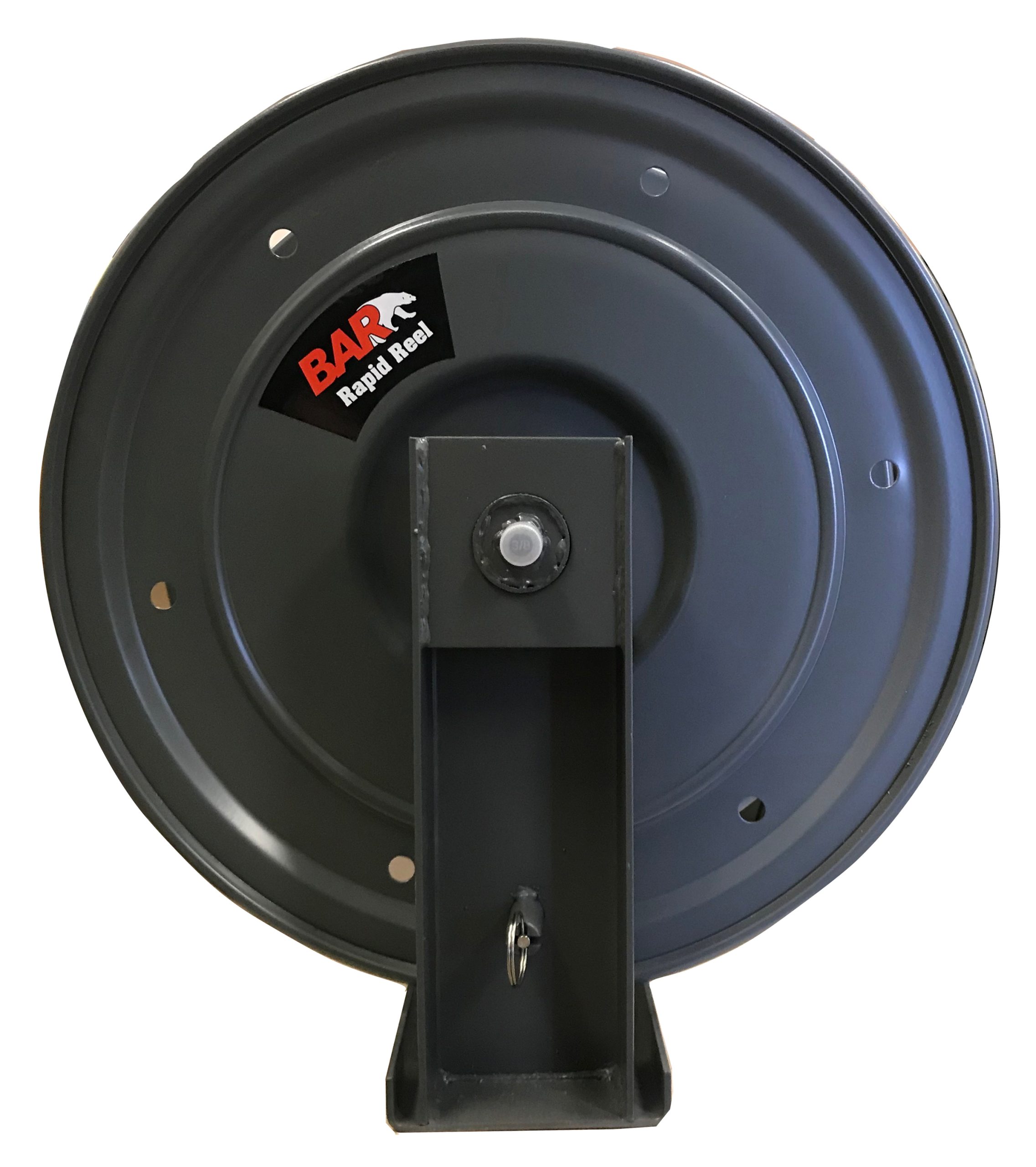

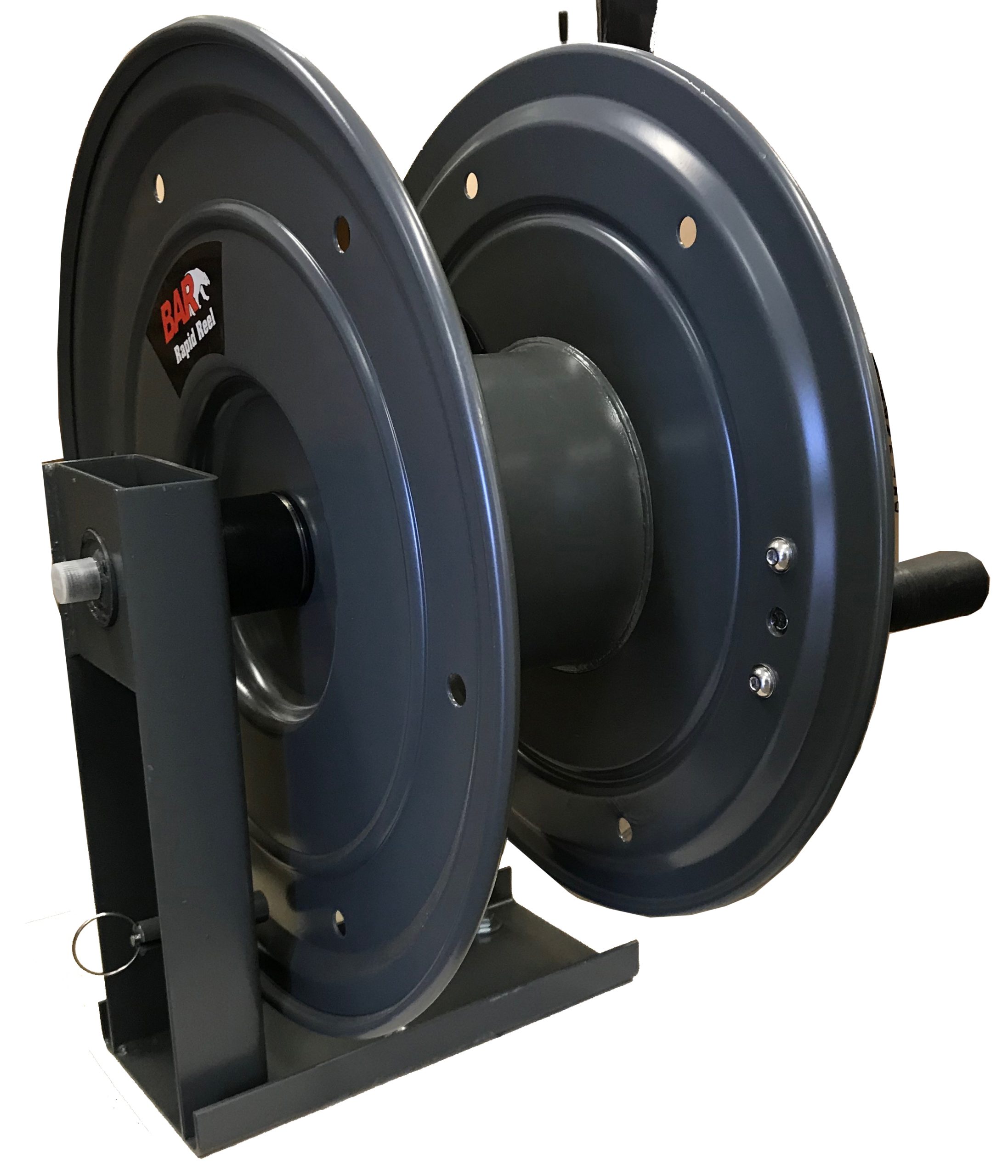

• Industrial A-Frame Crank Reel
• A new reel, offered as an option to 125 85.402.105 A Frame Style. This reel has inlet at the side, rather than through the drum. This prevents the retention of water in the drum that may cause rust
• A Frame style provides more support in mobile applications
• Universal 130 mm hole centre footprint
• High gloss powder-coated finish
• Extra heavy duty 6 point locking pin and adjustable rubber friction brake
• Dual heavy-duty sealed axle ball bearing with stainless steel hardware
• High-flow stainless steel swivel with Parker Viton O-Rings
• The reversible handle and swivel, let you switch sides for the best mounting option
• Hose guide to guard hose from reload damage (2100462)
• Optional 12-Volt power rewind kit. Includes mounting bracket, ring gear and hardware (103166)
• HOSE NOT INCLUDED

Specifications

• Capacity: 45 m of 3/8” Hose
• Max Pressure: 5,075 PSI
• Max Flow: 80 L/min
• Inlet Hose: 3/8″ F
• Outlet Swivel: 3/8″ F
• Max Temperature: 150°C
• Material: Steel with Stainless Steel fittings
• Dimensions:
• Weight:
• Brand: GP
