Features

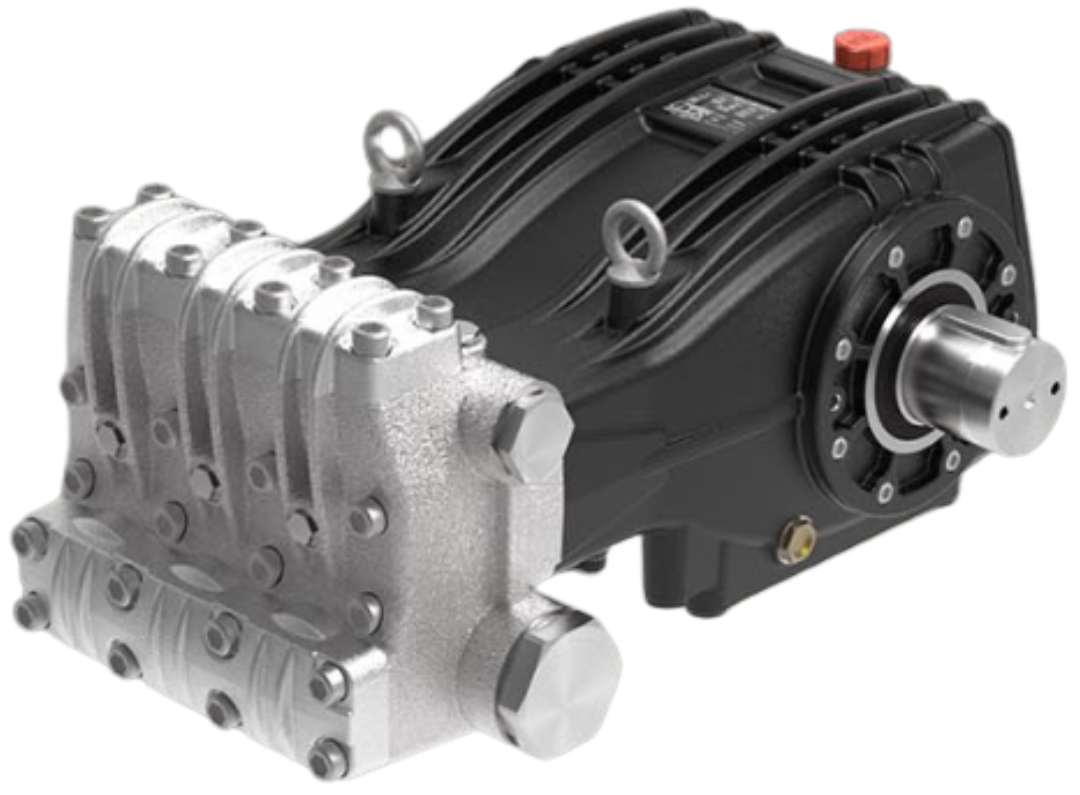

• Reciprocating plunger pump, 3 solid ceramic plungers, nickel plated spheroidal cast-iron head, aluminum crankcase with cataphoresis coating, triple sealing system, hardened steel crankshaft, oversize roller/ball bearings.
• The pumps of this series have a 80 mm diameter cylindrical male shaft, they produce a flow from 124.5 to 395.1 L/min, they operate at max 300 bar.

Specifications

• Series: HX/HXR
• Pump – Type: Plunger
• Speed: 800 RPM
• Flow: 260 L/min
• Pressure: 2320 PSI
• Power: 106.8 HP
• Weight: 158.9 kg
• Pump Shaft: Male, 80 mm
