Features

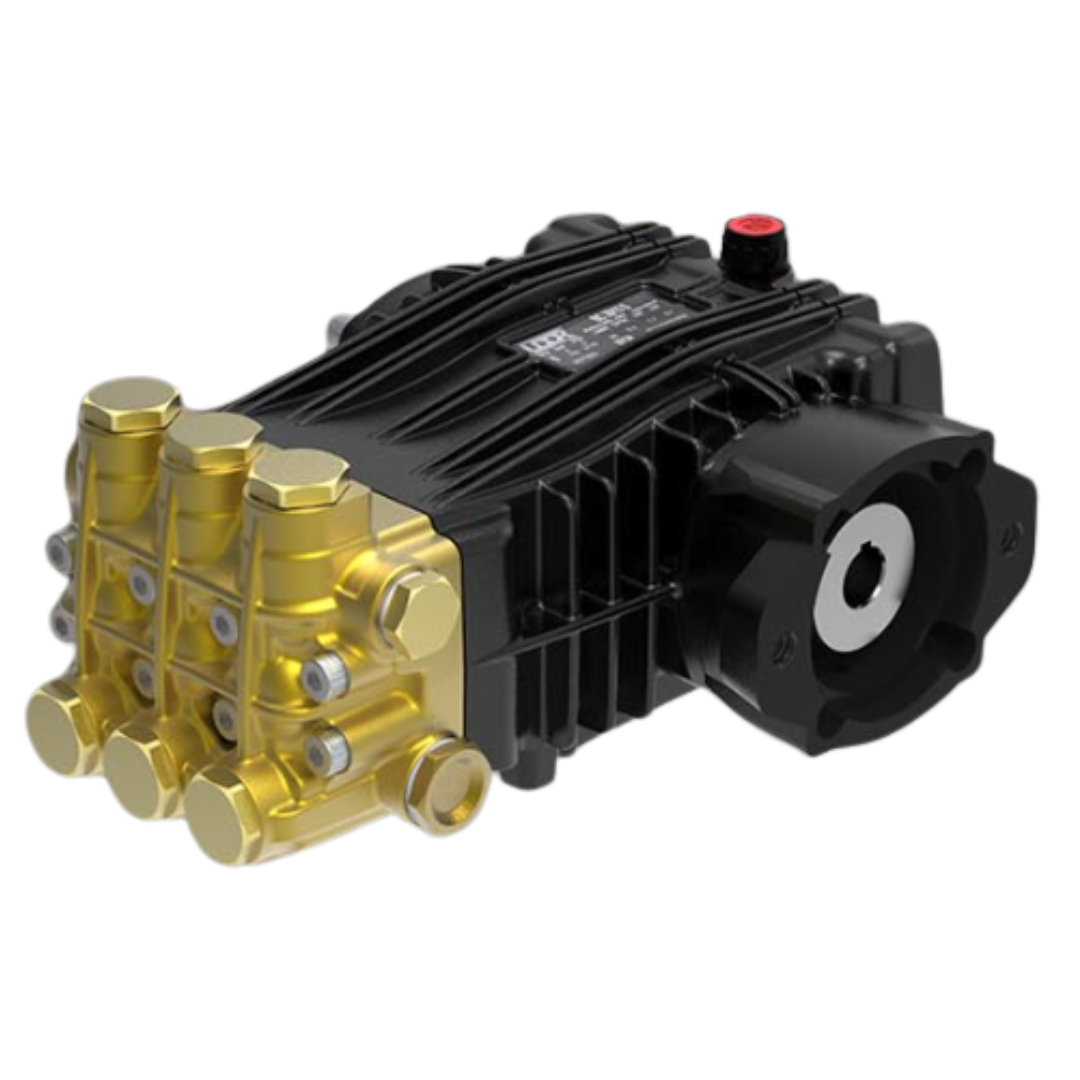

• Reciprocating plunger pump, 3 solid ceramic plungers, forged reinforced brass head, aluminum die cast crankcase with cataphoresis coating, double sealing system, hardened steel crankshaft, oversize roller/ball bearings.
• The pumps of this series have a 3/4″ hollow shaft, they produce a flow from 15 to 21 L/min, they operate at max 300 bar.
• The pump with MI shaft type (hollow shaft) can be directly coupled to hydraulic motor.

Specifications

• Series: BK
• Pump – Type: Plunger
• Speed: 1450 RPM
• Flow: 21 L/min
• Pressure: 3625 PSI
• Power: 13.4 HP
• Weight: 10.9 kg
• Pump Shaft: Hollow, 3/4″
