DYCI Swivel – Fully stainless steel

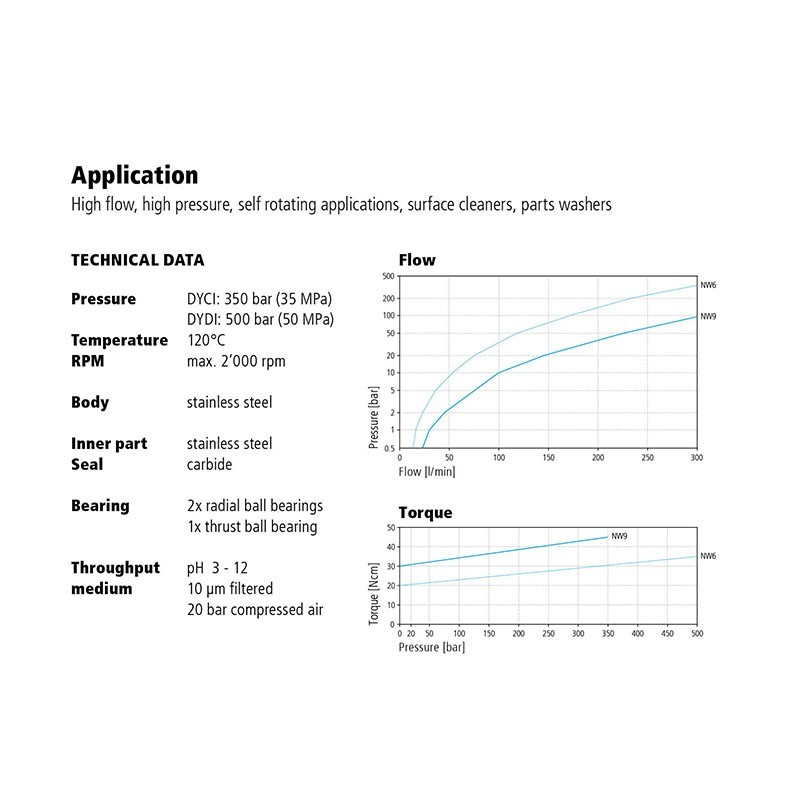

Application
High flow, high pressure, self-rotating applications, surface cleaners, parts washers
Specifications
- Pressure: DYCI: 350 Bar (35 Mpa) DYCI: 500 Bar (50 Mpa)
- Max Rpm: 2,000 Rpm
- Inlet: 3/8 F
- Outlet: 3/8M
- Inner parts materials: Stainless Steel
- Rated temperature: 120°C
- Seals material: Carbide
- Bearing: 2X radial ball bearings, 1X thrust ball bearings
- Throughput medium: pH 3 – 12, 10 µm filtered, 20 Bar compressed air
Part No. 55.103
