CAT 310S Plunger Pump
MAX 15 L/min., 2200 PSI, 950 RPM
Pressure Range:?100 to 2200 PSI
RPM:?950 RPM
Inlet:?1/2″ Npt
Outlet:?3/8″ Npt
Shaft:?20 mm

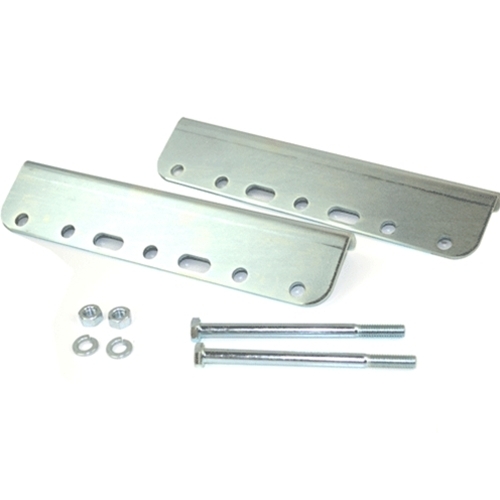

Mounting Kit:?30659 (Includes 30611 Mounting Rails, 30633 Pulley 8″ Diameter, Key, 118672 shaft protector cover or 30611 (Mounting Rails Only)
4.5kW / 6HP
Belt Drive
Brass?manifold
71?C Max Temperature
CAT PUMPS? TRIPLEX PLUNGER PUMPS?are designed to deliver smooth, low pulsation flows at a wide variety of pressures and flow rates. Widely used in continuous-duty, high pressure applications including Car/Truck Wash, Industrial Cleaning, Pressure Washing, Reverse Osmosis, Water Misting and many more.
CAT PUMPS??are the “Pumps with Nine Lives”. Standard Features Include: High pressure seals that are lubricated and cooled by the solution being pumped ? Oil-bath crankcase ? Heat treated valves and seats ? Forged brass or stainless steel manifolds ? Solid ceramic plungers ? Exclusive high pressure seal design ? Rated from 140? to 160? F. depending on the model. Seal options up to 180? F. available ? Wet ends can be serviced without entering the crankcase ? Pumps are rated to 50 micron particles and 5-9 ph.
Note: Mounting rails and mounting kits are not included and must be ordered separately.
