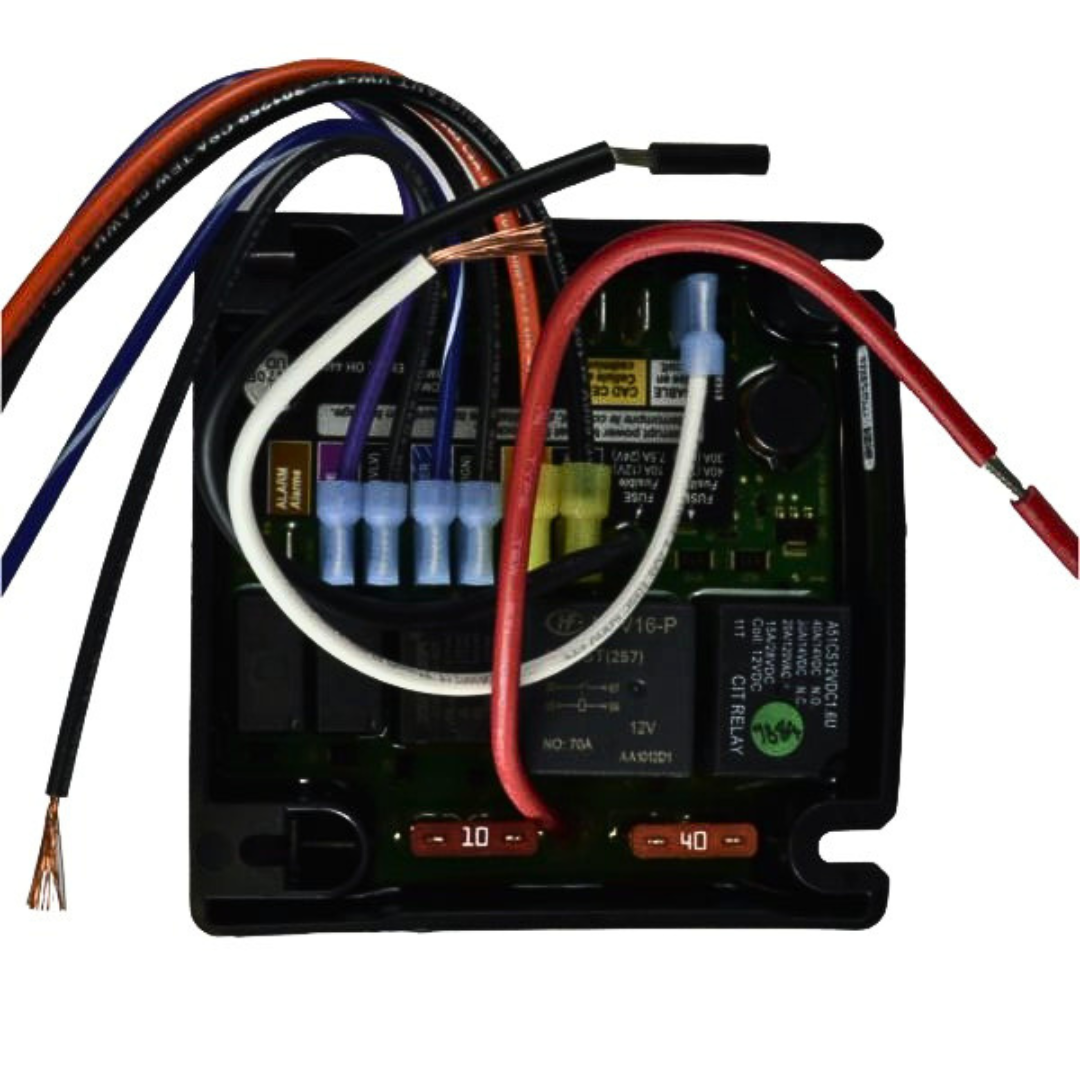

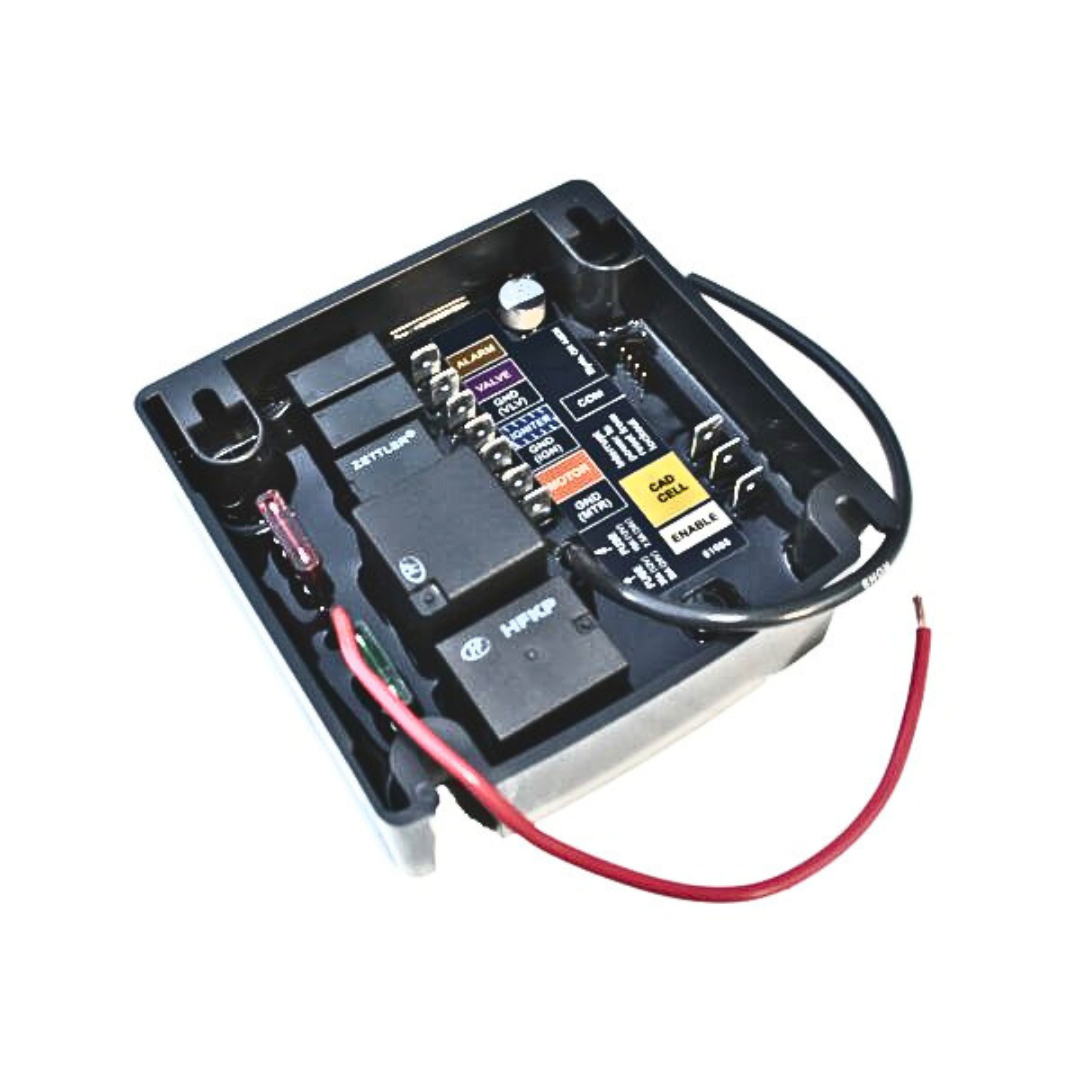

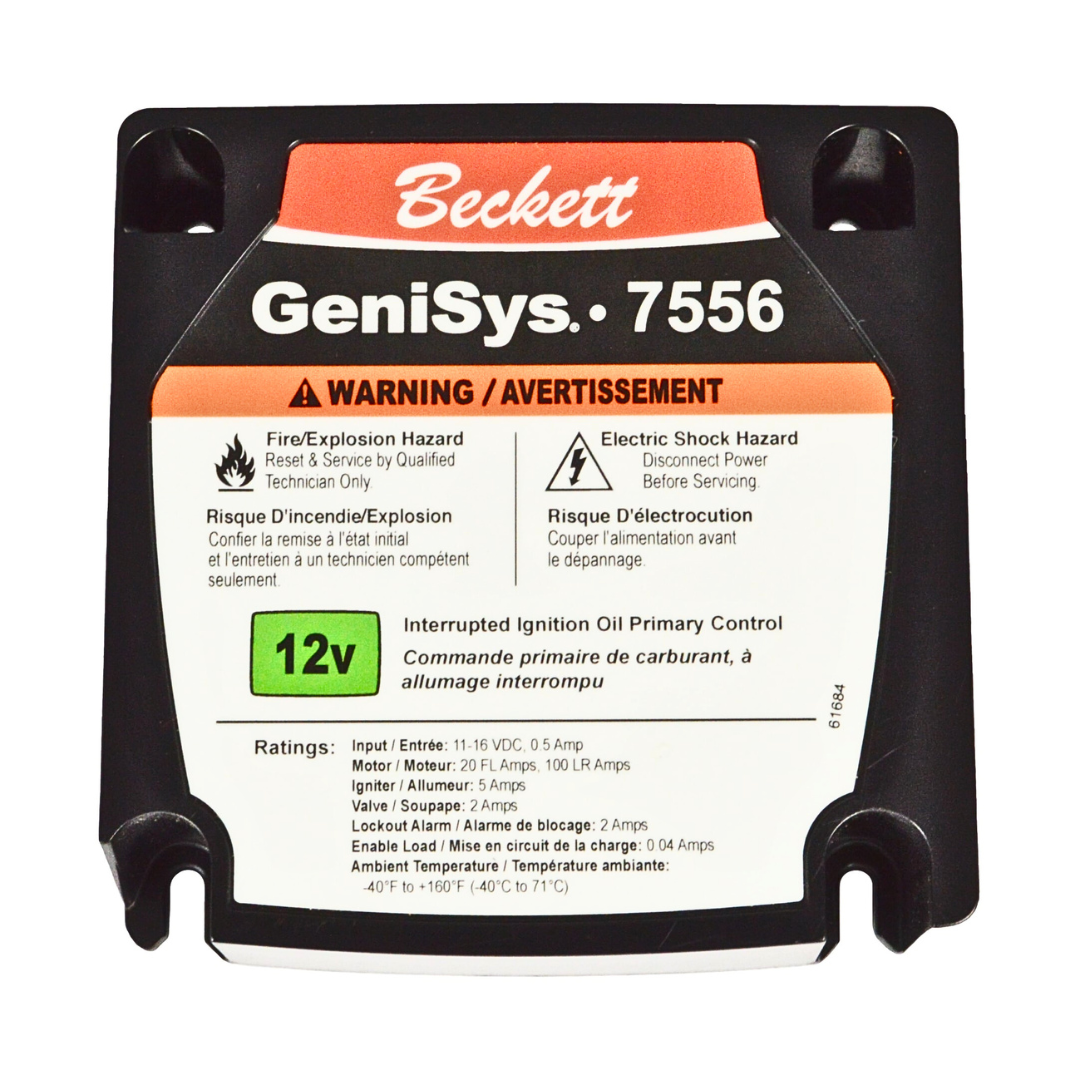

Beckett GeniSys Burner Control

Features

• Programmable valve-on delay and motor-off delay provides chamber cooling after call for heat
• Valve-on delay / motor-off delay — field-programmable with Beckett GeniSys® Contractor Tool
• Epoxy potted for moisture resistance
• Welded relay protection with redundant motor relays
• High ambient temperature rating
• Alarm output enables visual or audio indication of flame failure and lock out condition
• Interrupted ignition
• Relight function
• Fused protection
• 15 second lockout time
• Communication port

Specifications

• Lockout Time: 15 seconds
• Valve-On Delay Time: 15 seconds
• Motor-Off Delay Time: 2 minutes
• Electrical Ratings
  • Inputs
    • Voltage: 12 VDC nominal (11 to 16 VDC)
    • Current: 160 mA plus burner motor, igniter, and valve loads
  • Outputs
    • Motor: 12 VDC, 20 full load amps (FLA), 100 locked rotor amps (LRA)
    • Igniter: 12 VDC, 5 A
    • Solenoid Valve: 12 VDC, 2 A
    • Lockout Alarm: 12 VDC, 2 A
• Environmental Ratings
  • Storage & Operating Ambient Temperature: -40°F to +160°F (-40°C to +71°C)
  • Moisture: 5 to 95% RH, condensing

Replaces Beckett 7434, 7556P152M, 7556P-152M, 7556P-152, 7556P152
