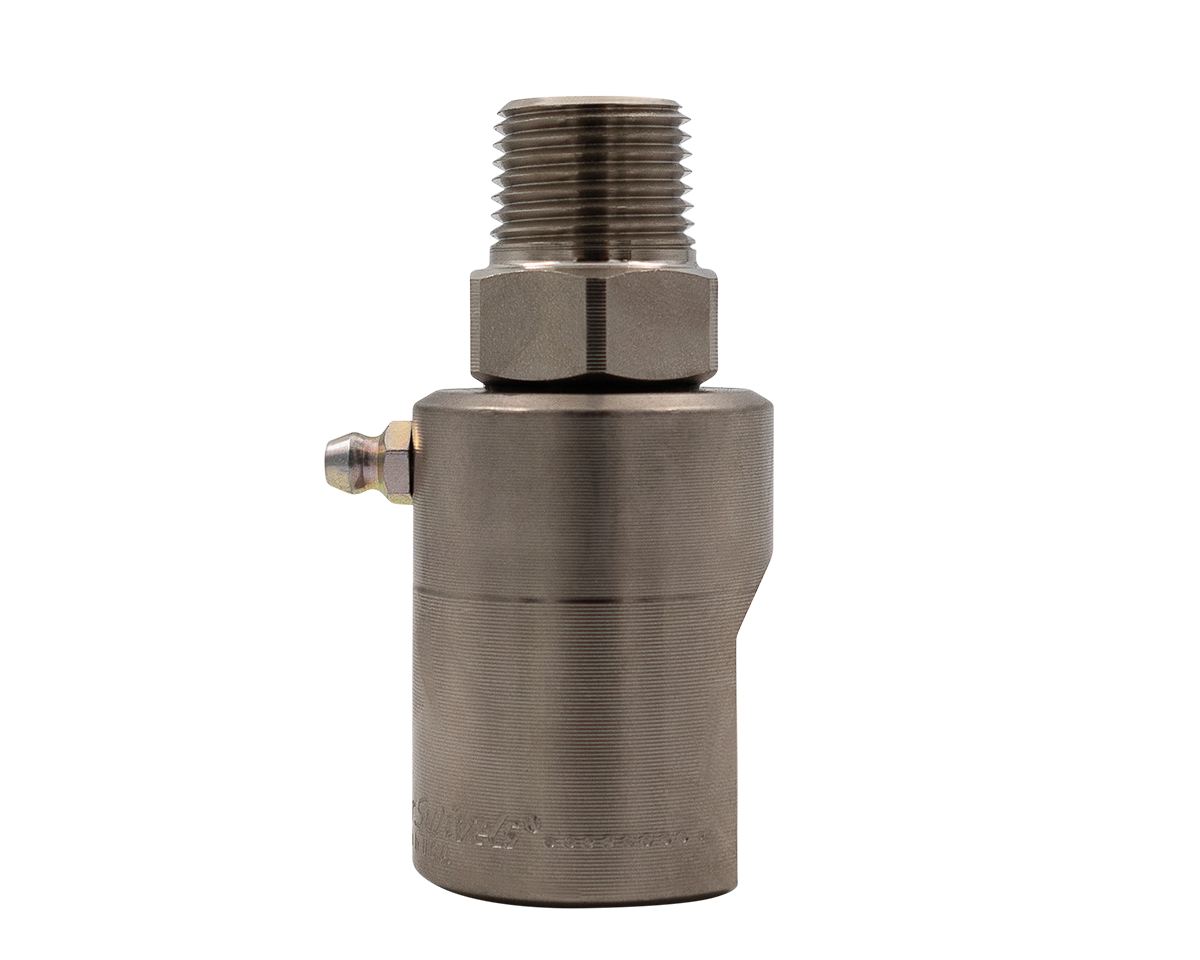

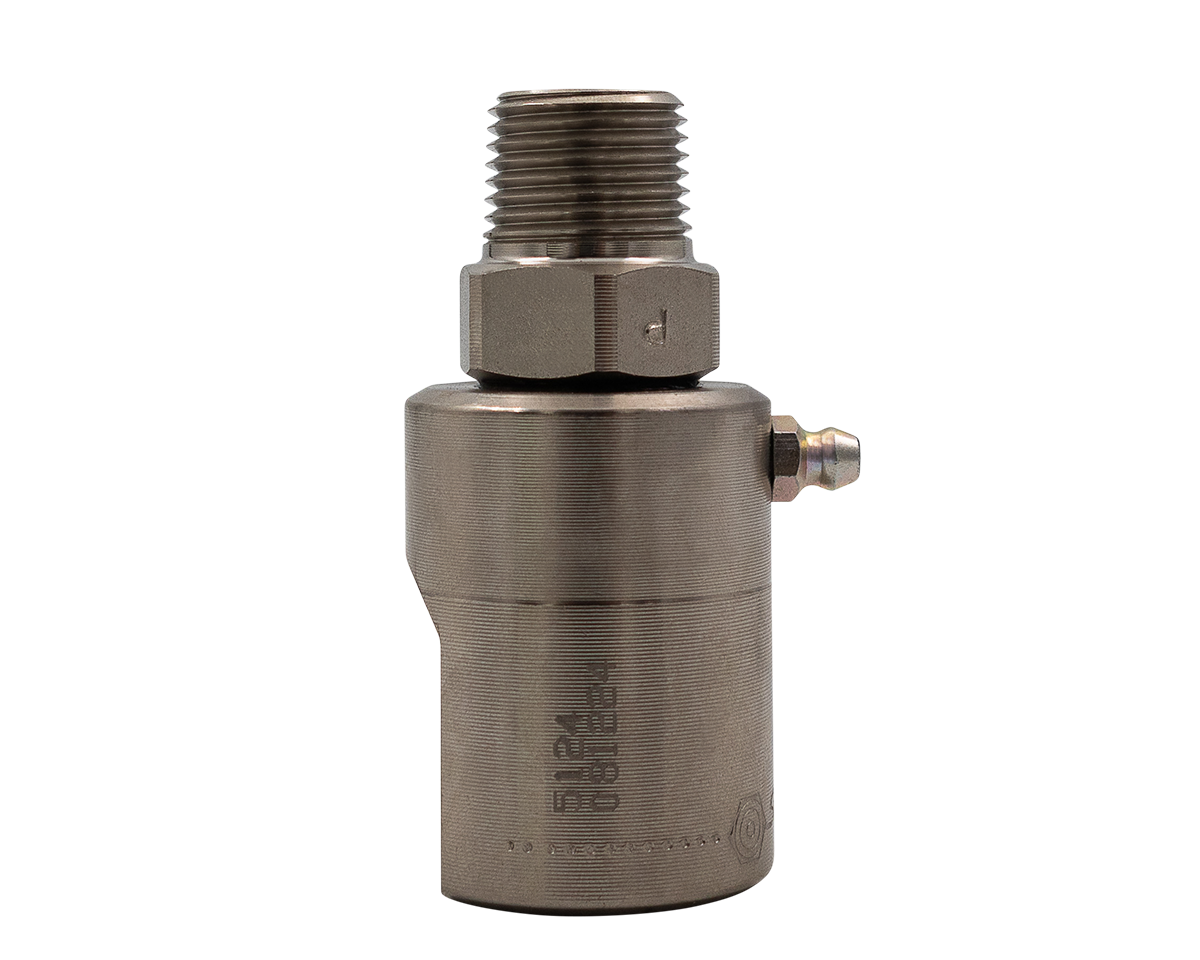

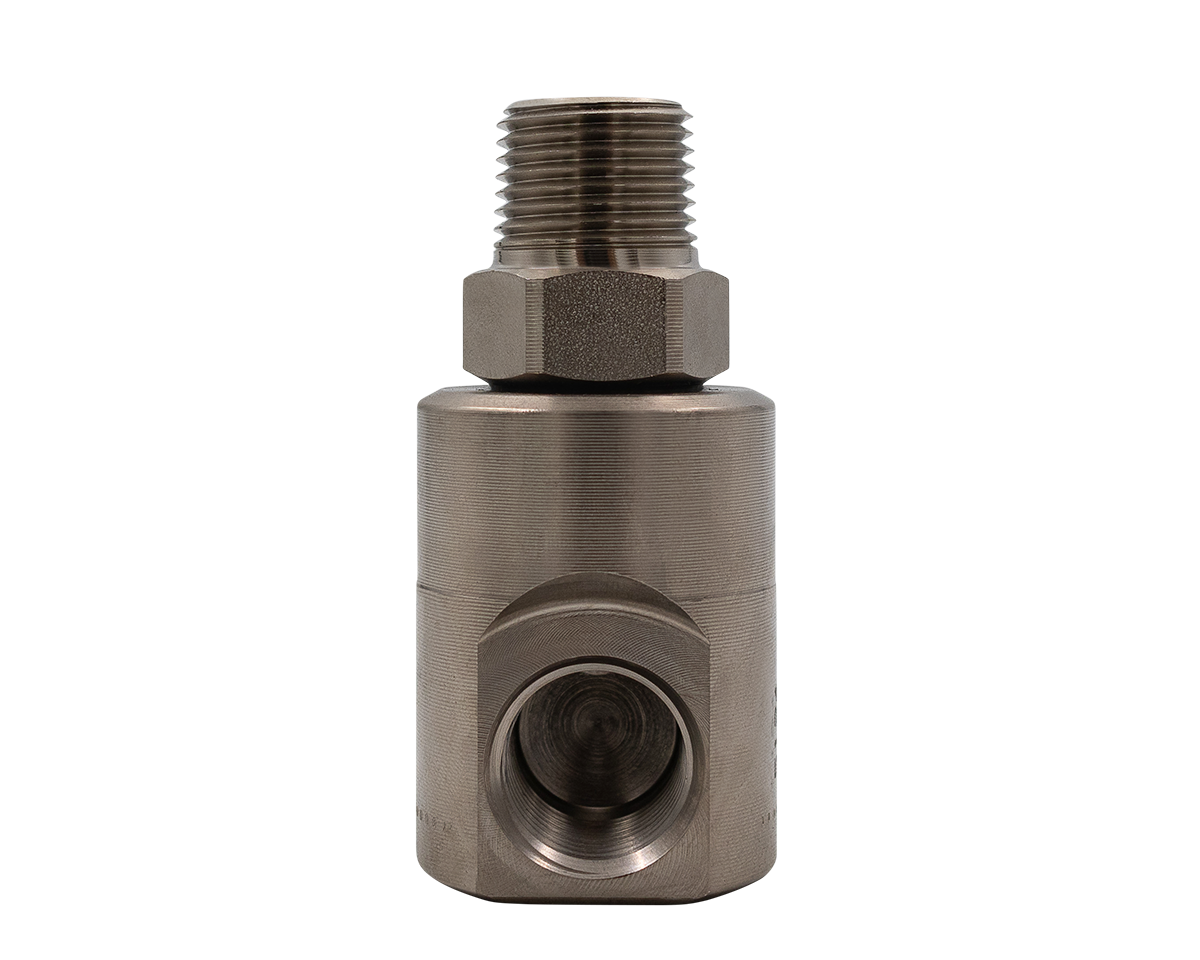

Super Swivels – 90° Swivels

Ideal selection for use as replacement swivels on Automatic Car washes or Hose Reels. Can also be used for ceiling booms. “Live” swivel ball bearing design. Rebuildable. Grease Zerk is standard. Superior quality Nickel-plated alloy steel. The maximum temperature is 400° F. Ideal for use with hot water, steam, hydraulic fluid, etc.

Specification

• Inlet: 1/2″ M NPT
• Outlet: 1/2″ F NPT
• Max. PSI: 5000
• Max.RPM: 10
• Flow: 30 L/min
• Temp: 120°C
