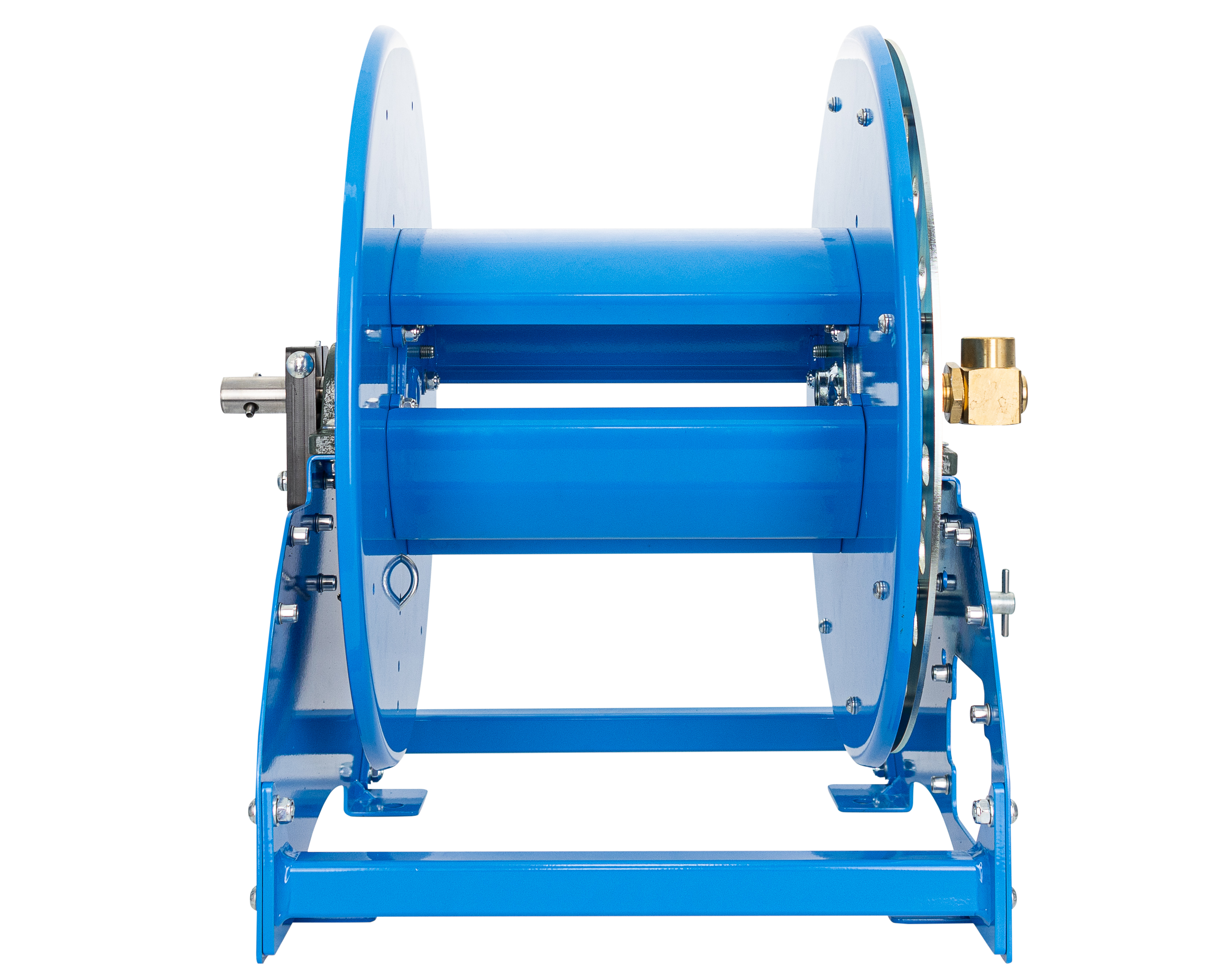

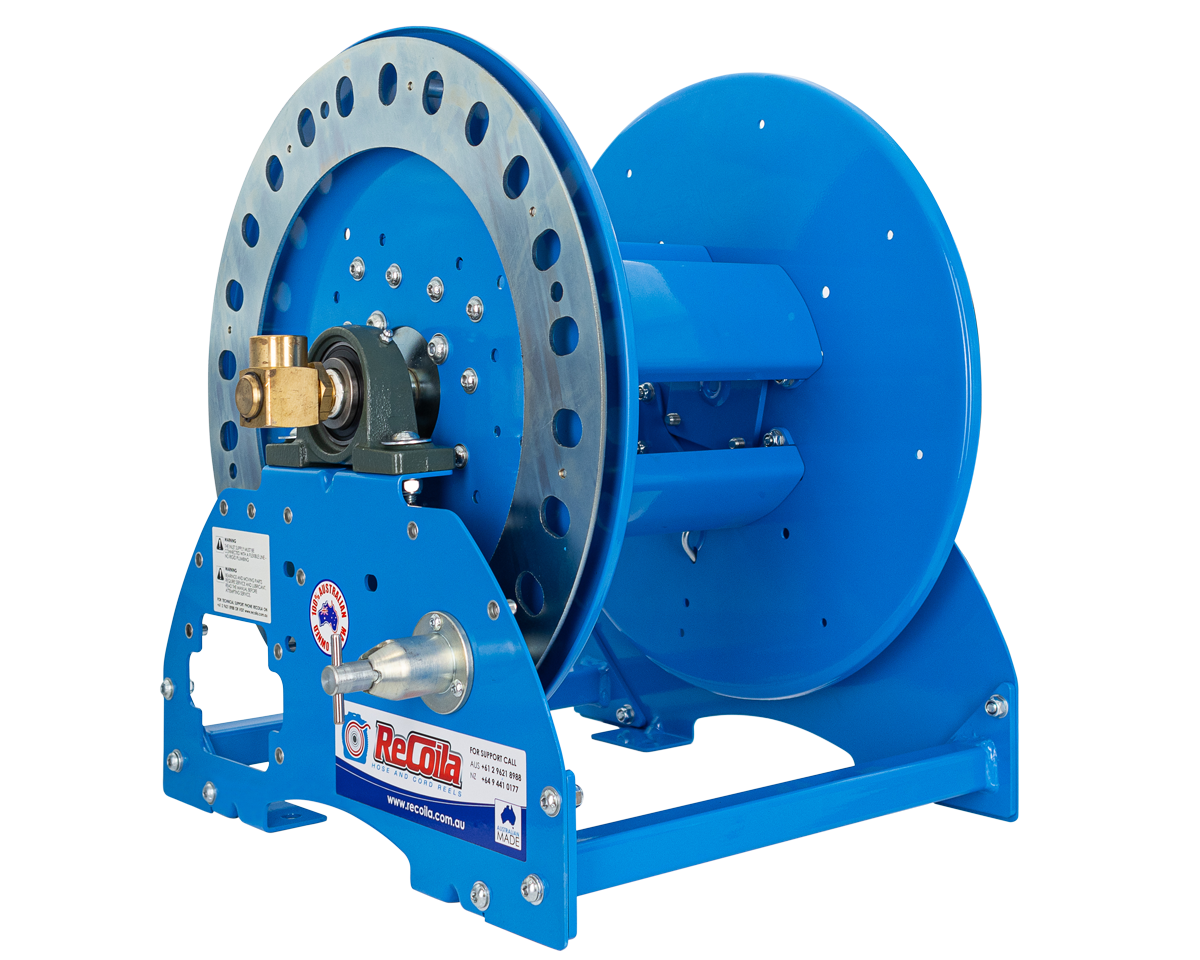

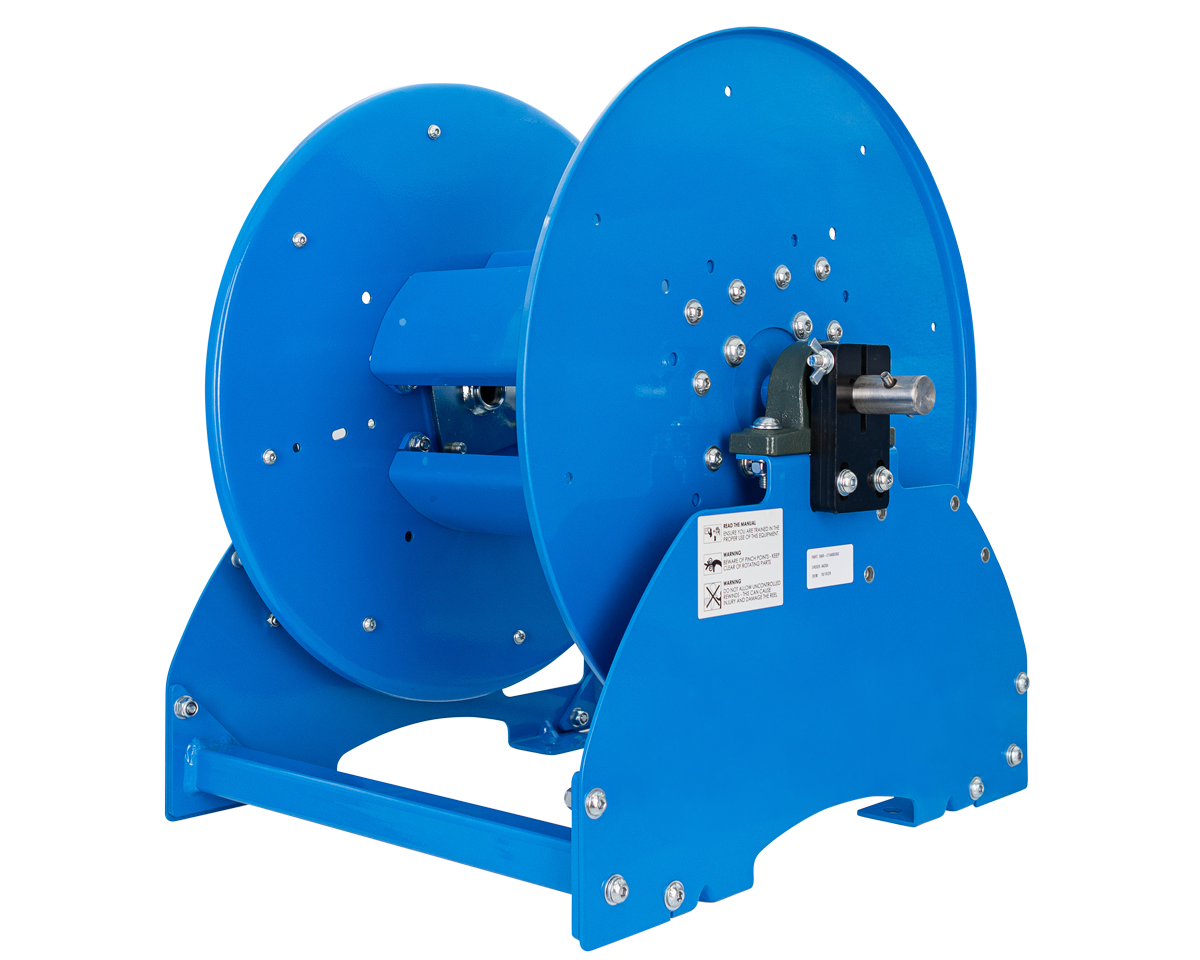

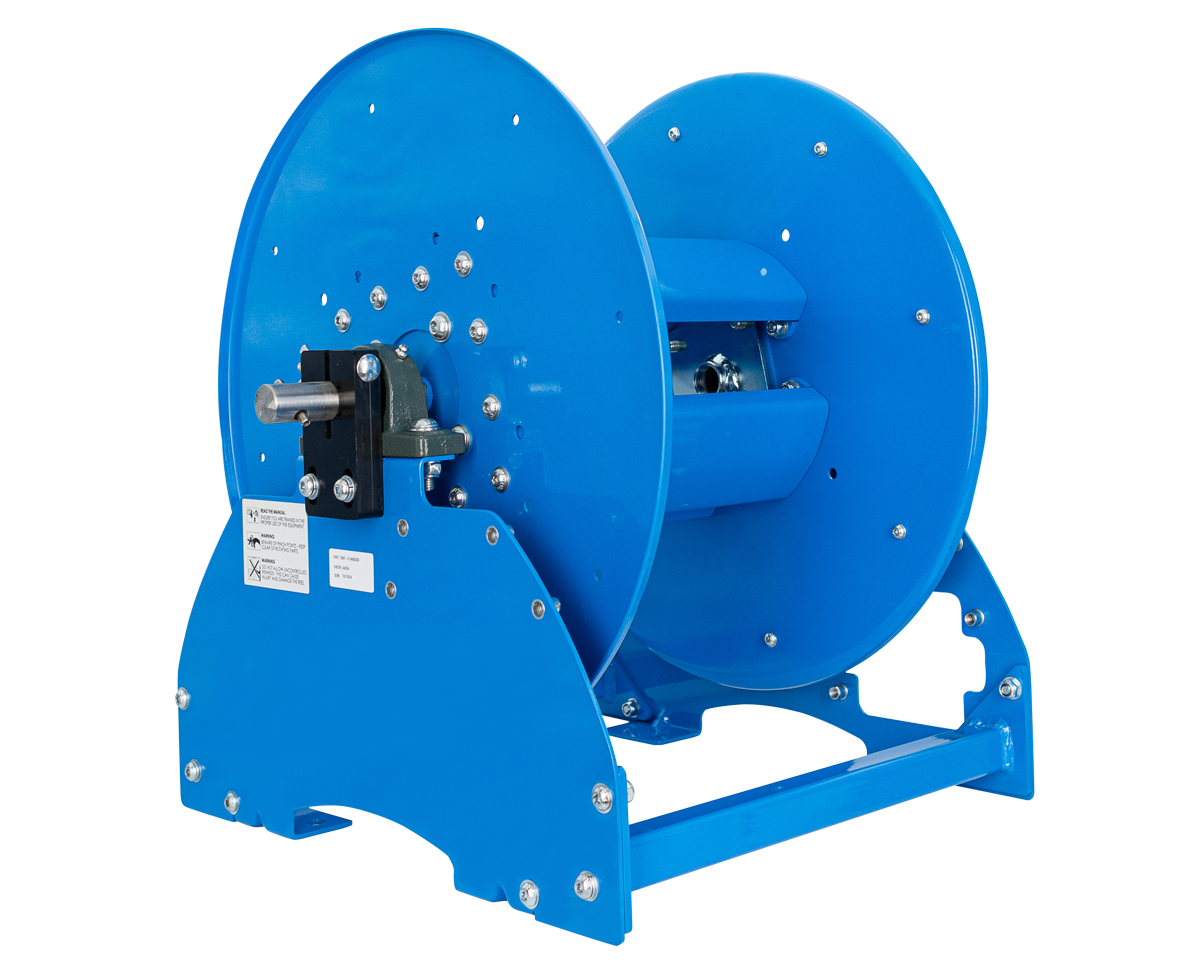

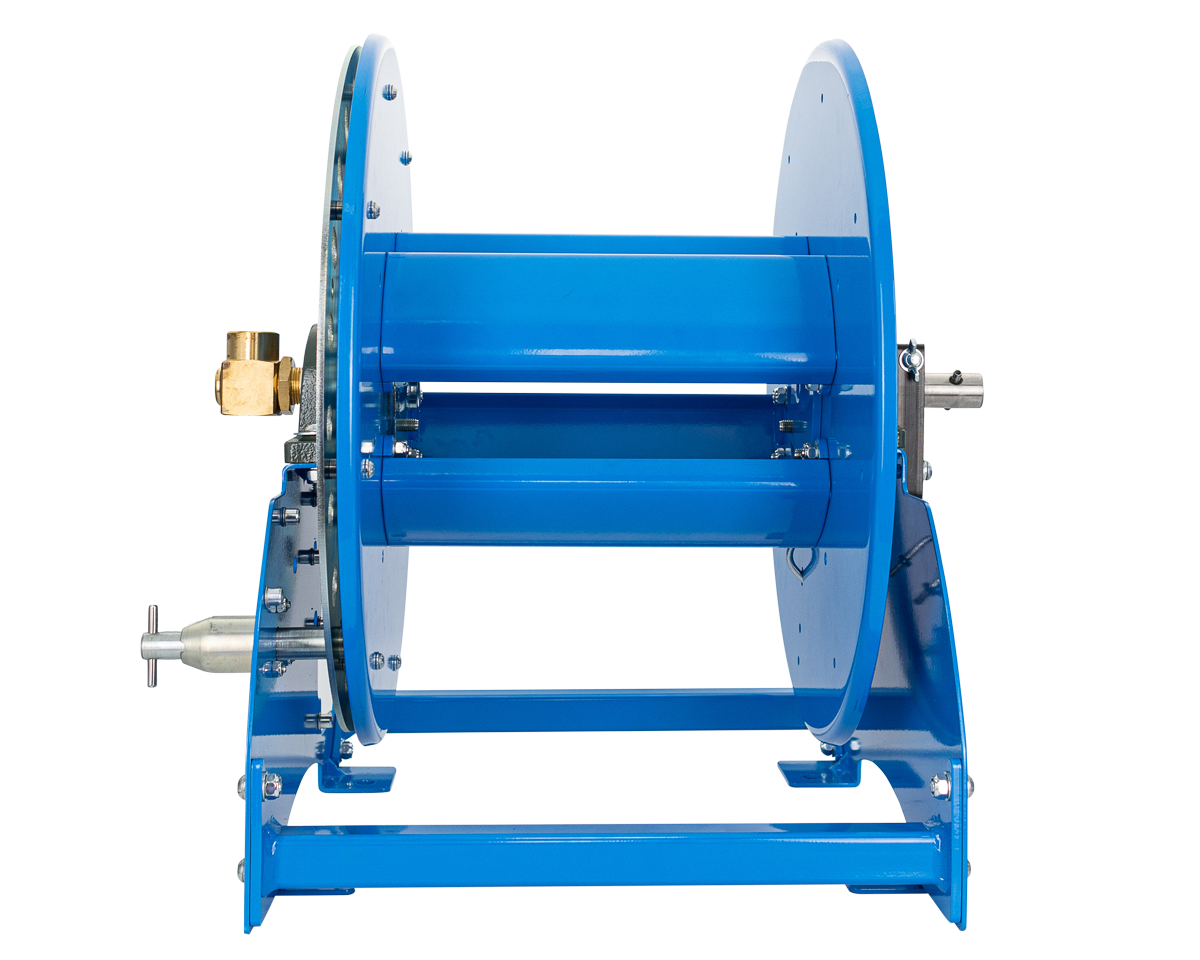

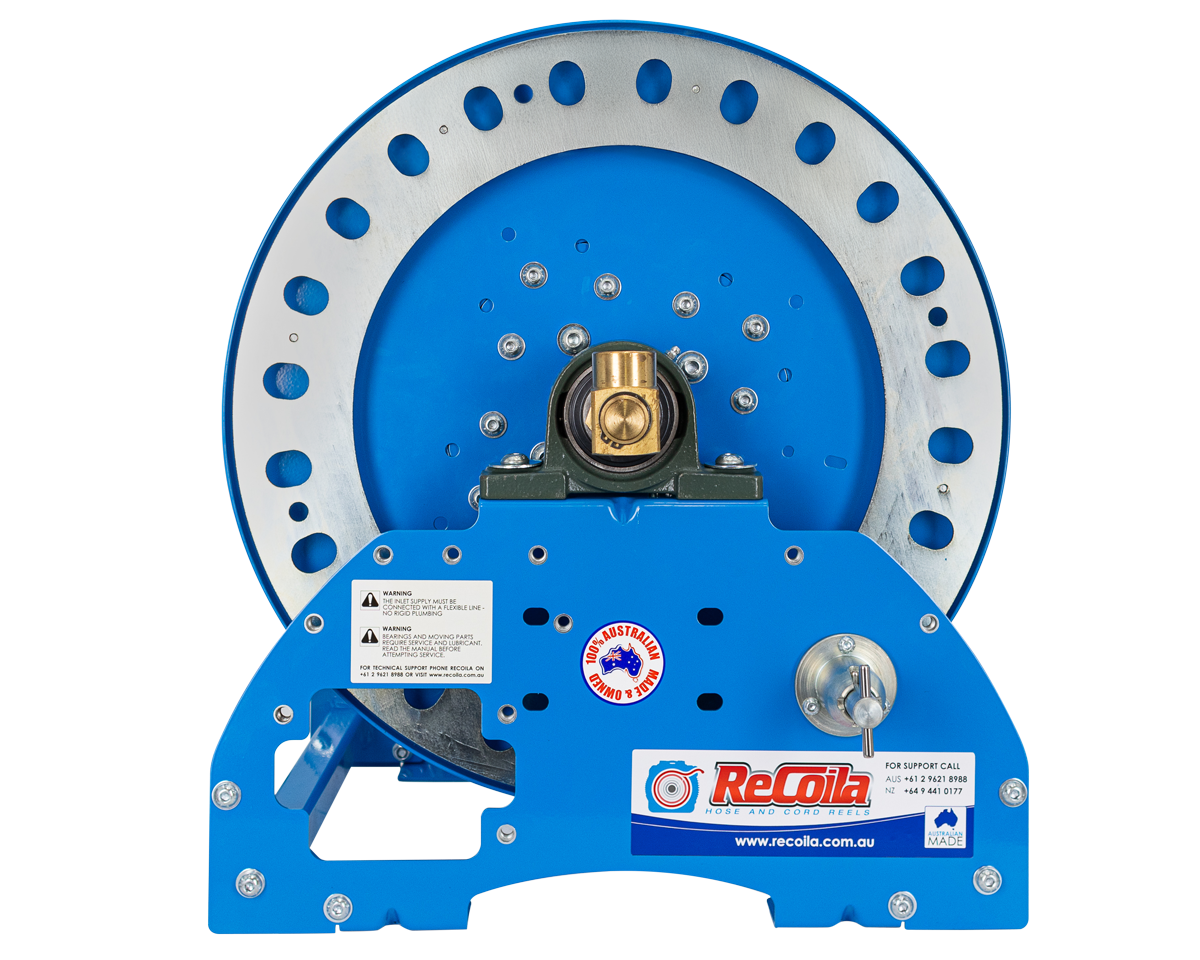

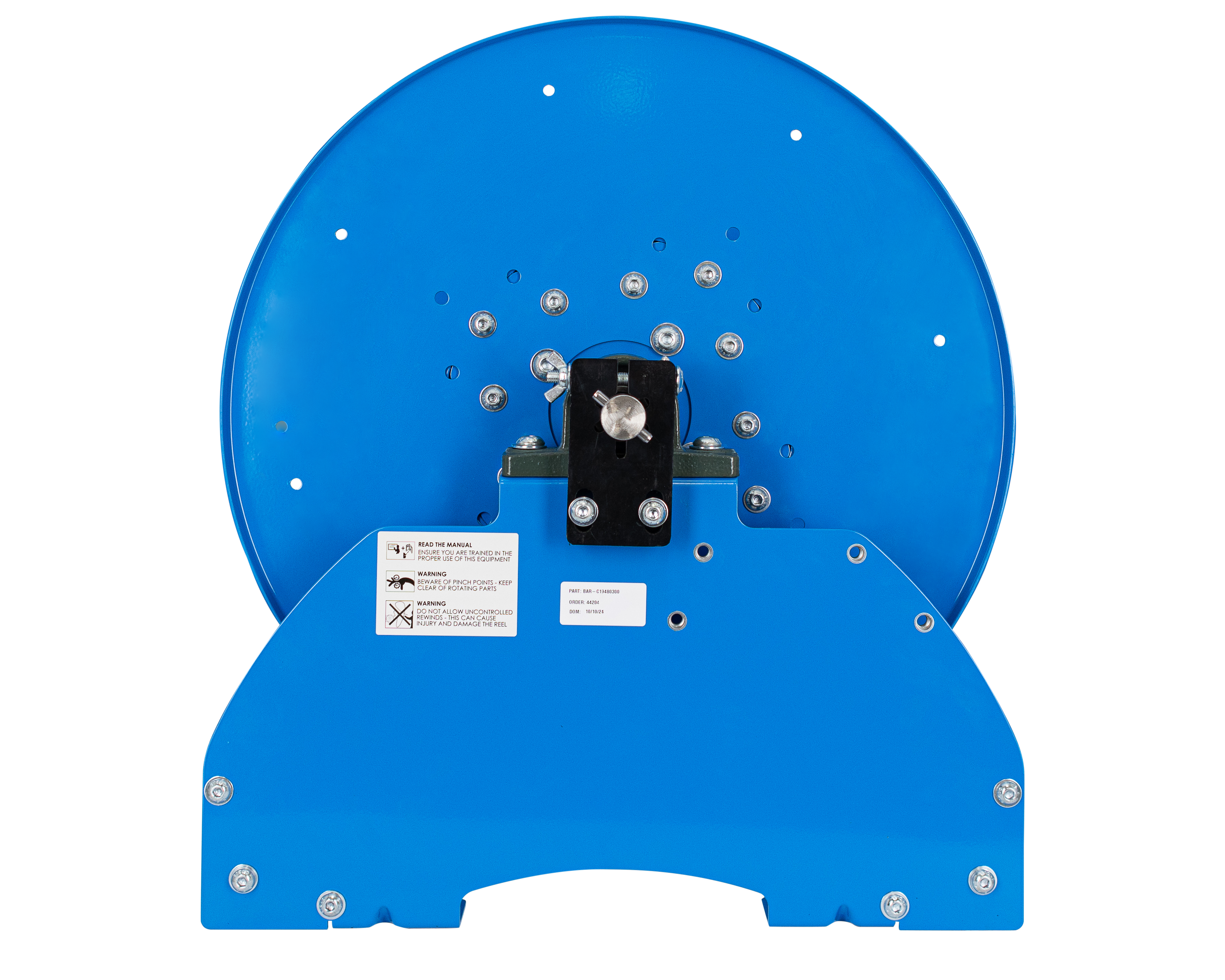

Recoila “C” Series Hose Reel

 Recoila “C” series Hand Crank low pressure bare hose reel to suit 30m x 3/4” Hose, complete with ¾” low pressure swivel, Pin Lock, Friction brake. Reel is complete with full flow Steel fluid path. Ball bearing main axle bearings. Welded frame, heavy duty spun flanges. Complete with Friction Brake and Pin Lock. This is a bare reel no hose.

Hose capacity – See below

Hose ID             Hose OD            Hose length

19 mm                  27 mm                   50 m

19 mm                  32 mm                   30 m

Features

•  Compact Rugged Design
• Main axle supported by ball bearings for smooth and reliable rotation
• Heavy-Duty Spring-Loaded Pin lock
• Stainless steel metric fasteners predominately socket head and button head cap screws
• High flow swivels and fluid path
• Positive lock spool-lock holds the spool fixed during transit, preventing overrun
• Bolt together frame and spool offers easy access for maintenance
• Unique modular design allows the user to add or change drive systems with a simple bolt on feature
• Optional ring gear and spur gear (NO chain and sprockets to adjust)
• Spun 2.4 mm flanges
• 3 mm fabricated side frames
• Optional Fluid Path Construction materials
• Right & Left-Hand configurations
• Our open spool design allows for air flow and less prone to rust
• Carbon Steel Construction (Other Construction Materials available on Request)
• Powder coated blue
• Powder coat with a zinc rich primer all components before assembly
• local parts service and support from Recoila
• Our threaded fittings are standard local BSP
• Standard 1-year warranty

Options for C Series Reels

• Gear guards for Motor Drives only
• Stainless steel roller guides

Exclusions

• Hose Assembly
• Roller Guides
